型号
|

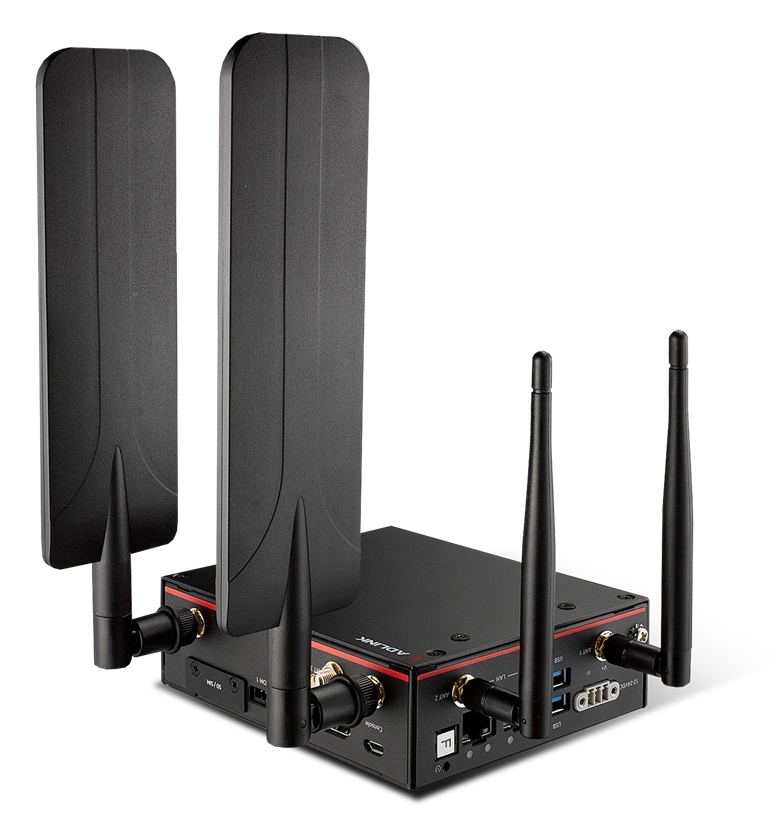

MXA-200
|
|
核心系统
|
|
CPU
|
i.MX8M Plus ARM Cortex A53 Quad Core 1.8GHz
|
|
内存
|
LPDDR4 2GB/4GB 4000 MT/s
|
|
主存储
|
32GB/64GB eMMC (Onboard)
|
|
子存储
|
microSD
|
|
TPM
|
TPM 2.0
|
|
RTC
|
Monthly difference max.180sec
|
|
WDT
|
Support Watch dog timer
|
|
I/O 接口
|
|
USB
|
2x USB 3.0 Type A
|
|
以太网
|
2x GbE
|
|
COM
|
2x isolated RS-232/422/485 4-wire
|
|
显示
|
1x HDMI up to 3840 x 2160 at 30Hz
|
|
WiFi/BT
|
1x M.2 2230 E-key for WiFi/BT
|
|
Expanded I/F
|
1x M.2 2242 B-key (USB 3.0) for 5G or 4G/LTE
|
|
Power supply
|
12-24VDC
|
|
机械和环境指标
|
|
冷却方式
|
无风扇自然风冷
|
|
工作温度
|
-20°C to 70°C
|
|
存储温度
|
-25°C to 85°C
|
|
尺寸
|
131 (H) x 40 (W) x 60.5 (L) mm
|
|
安装方式
|
导轨/壁挂
|
|
振动测试
|
EC/EN 61131-2 compliant 5 to 9 Hz Single amplitude 3.5 mm (0.14 in) 9 to 150 Hz Fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approximately 100 minutes)
|
|
冲击测试
|
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
|
|
Electrical fast transient
|
IEC 61000-4-4
|
|
burst immunity
|
2 kV: Power port,1 kV: Signal ports
|
|
ESD immunity
|
IEC/EN 61000-4-2 Level 3 Contact discharge method: 6 kV, Air discharge method: 8 kV
|
|
证书
|
|
UL
|
cULus 61010 for IT equipment's
|
|
EMC
|
CE / FCC class A/ UKCA / RCM / KC / EAC
|
