型号
|

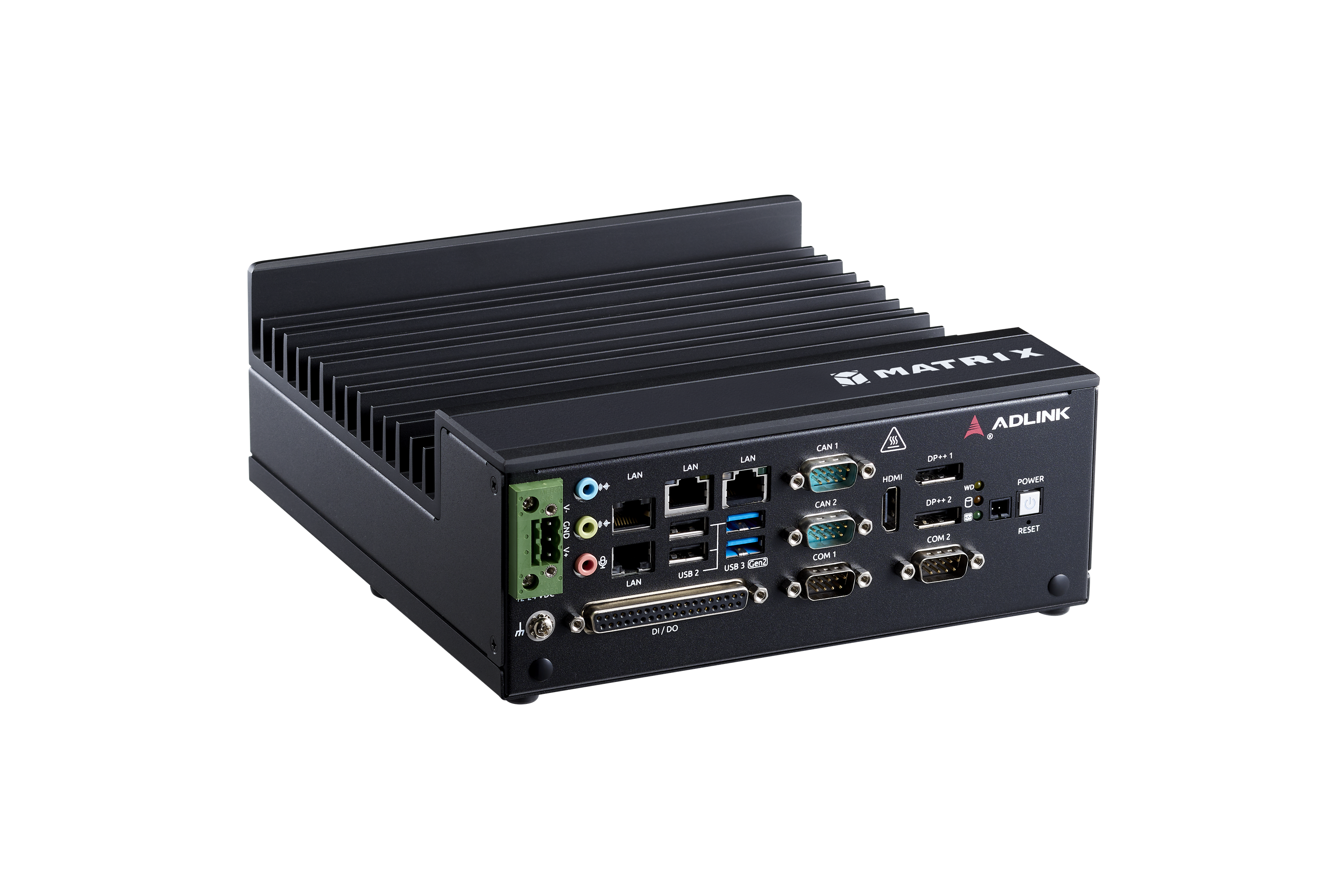

MXC-3340
|
|
SKU
|
MXC-3341
|
|
|
ADL-N,N97, 4-cores, 3.6GHz, 12W
|
|
内存
|
|
DIMM Type/ Frequency
|
1x DDR5 SO-DIMMs, up to 4800MHz
|
|
最大容量
|
max 16 GB
|
|
HDMI
|
1 (HDMI 2.0, 4096 x 2160 @ 60Hz)
|
|
DisplayPort
|
2 (DP1.4, 4096 x 2160 @ 60Hz)
|
|
以太网
|
|
Gbe Port
|
4x GbE ports/I210IT (10/100/1000 Mbps Ethernet)
|
|
存储
|
|
SSD
|
1x SATA III 6Gb/s for 2.5inch SSD
|
|
I/O 接口
|
|
USB
|
1x USB 3.0 (1A,5Gbps) Type-A connector
3x USB 2.0 Type-A connector
|
|
COM
|
2x isolated RS-232/422/485 DB9 (1.5KV)
|
|
CAN
|
2x DB9 isolated CAN ports with SjA1000 CAN controller (1.5KV)
|
|
GPIO
|
8-CH DI and 8-CH DO with 1.5KV isolation
|
|
Audio
|
Realtek ALC888S
1x line-in, 1x line-out, MIC-in ,1x 3 Jack
|
|
扩展插槽
|
|
M.2
|
M.2 2280 M Key (PCIe x2)
|
|
|
M.2 2230 E Key with (Wi-Fi(PCIex1), BT(USB2.0)) for wifi 6
|
|
|
M.2 3042 B-key (USB2.0)for 4G/ SIM card
|
|
TPM
|
Yes (TPM 2.0, Infineon SLB9670/ Nuvoton co-lay)
|
|
规格
|
|
尺寸
|
142 (W) x219 (D) x210(H) mm (WxDxH)
(5.84” x 8.76” x 8.4)
|
|
电源
|
|
电源
|
9-36V (+-5%)
|
|
操作系统支持
|
Win 10 IoT LTSC 2021
Ubuntu 22.04
|
|
扩展
|
|
I/O 插槽
|
1x PCIe x8, 2x PCIe x4
|
|
环境
|
|
工作温度
|
-20°C to 60°C (0.6m/s Air Flow)
|
|
存储温度
|
-40°C to 85°C (-40˚F to 185˚F) (excl. HDD/SDD/CF)
|
|
湿度
|
~95% @ 40°C (104˚F) (non-condensing)
|
|
震动
|
3 Grms, IEC 60068-2-64, random vibration, 5 ~ 500 Hz, 1 hr/axis
|
|
冲击
|
30G, IEC60068-2-27, half sine, 11m duration
|
|
ESD
|
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
|
|
EMC
|
CE and FCC Class B
|
|
Safety
|
UL 62368, CB
|
