型号
|
MXE-310
|
|
核心系统
|
|
CPU
|
I3-1315UE
|
|
内存
|
|
DIMM
|
2x DDR5 SO-DIMMs, up to 4800MHz
|
|
最大容量
|
max 64 GB
|
|
显示
|
|
HDMI
|
1 (Optional 2)
|
|
DisplayPort
|
1
|
|
网络
|
|
Gbe Port
|
2x GbE ports/I226IT (optional 6 LAN)
|
|
存储
|
|
SSD
|
1x SATA III 6Gb/s for 2.5inch SSD
|
|

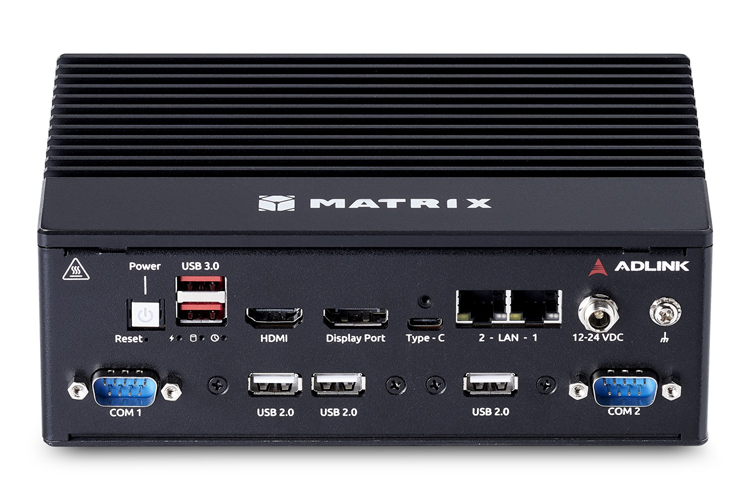

I/O Ports
|
|
USB
|
2x USB 3.2 Type A 3x USB 2.0 Type A
1x USB 4.0 Type C (Support Monitor)
|
|
COM
|
2x RS-232/422/485, 2x RS-232 (DB9)
|
|
CAN
|
1x DB9 CAN port (Optional)
|
|
GPIO
|
8-CH DI and 8-CH DO
|
|
Audio
|
Realtek ALC888S
1x line-in, 1x line-out, MIC-in,1x 3 Jack
|
|
扩展插槽
|
|
M.2
|
M.2 2280 M Key (PCIe x2)
M.2 2230 E Key
M.2 3042 B-key
|
|
TPM
|
Yes
|
|
扩展功能
|
Customization By PCIe4x4
|
|
尺寸
|
180 x 130 x 70 mm
|
|
电源
|
12 to 24V DC +-5%
|
|
OS
|
Win 10 IoT LTSC 2021 / Ubuntu 22.04 (Support By project)
|
|
环境指标
|
|
工作温度
|
-20°C to 60°C (With 0.6m/s Air Flow, 15W CPU)
|
|
存储温度
|
-40°C to 85°C (-40˚F to 185˚F) (excl. HDD/SDD/CF)
|
|
湿度
|
~95% @ 40°C (104˚F) (non-condensing)
|
|
震动
|
30G, IEC60068-2-27, half sine, 11m duration
|
|
冲击
|
3 Grms, IEC 60068-2-64, random vibration,
5 ~ 500 Hz, 1 hr/axis
|
|
EMC
|
CE and FCC Class B
|
|
Safety
|
UL 62368, CB
|
